Steam Generator
LSH0.5 Ton Vertical Biomass Wood Steam Boiler/Steam Generator
※ Compact structure, small footprint.
※ Integrated design of steam boiler,silo,feeder.
※ Multi-return layout, 93% high thermal efficiency.
※ Wide-range in application,biomass,pellet,wood,firewood etc.
※ Automatic intelligent computer control.
※ No pollution gas emission, real green environmental protection products.
Product Details

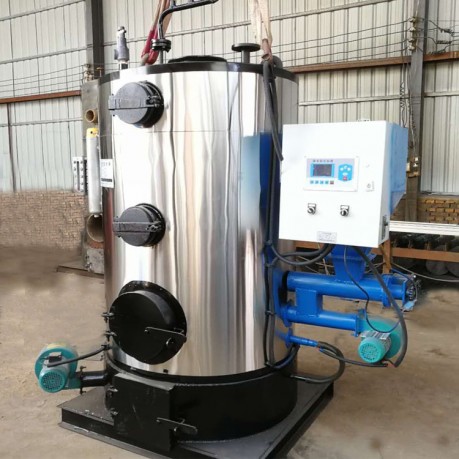

Vertical Biomass Wood Steam Boiler/Steam Generator
Compared with other steam generators, our biomass pellet steam boiler is the smallest. All auxiliary engines are integrated on one bottom plate, which can be used after power supply, water supply and steam pipeline are connected.
Our biomass wood steam generator adopt proprietary technology, carry out optimal design to ensure sufficient heating surface, countercurrent heat transfer technology to ensure the lowest smoke exhaust temperature and maintain the thermal efficiency more than 93% under rated full load working conditions.
Low carbon, low nitrogen and low pollution gas emissions makeour steam generator really green products.
Applicable industry of Wood Pellet Boiler
Washing and ironing industry: Supporting the use of dry cleaning machine, dryer, water washing machine, dehydrator, ironing machine, iron and other equipment.
Food machinery industry: Supporting the use of tofu machine, steaming box, sterilization tank, packaging machine, coating equipment, sealing machine, and other equipment.
Biochemical industry: Supporting the use of fermenter, reaction kettle, sandwich pot, mixer, emulsifier and other equipment.
Other industries: clothing factories, dry cleaners, washing plants ironing and drying, steamed rice, boiling water, hospital, school, chemical factory disinfection, laboratory, pharmaceutical factory, food factory dry disinfection heating, cooking soymilk, heating food;Matching fermentation tank, reaction kettle, reaction pot sandwich pot, steamed rice cabinet(oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing station) hot water supply, (bridge, railway) concrete maintenance, (leisure and beauty club) sauna bath, heat exchange equipment, etc.
Feature of Biomass Steam Boiler
※ Compact structure, small footprint.
※ Integrated design of steam boiler, silo, feeder.
※ Multi-return layout, 93% high thermal efficiency.
※ Wide-range in application, biomass,pellet, wood, firewood etc.
※ Automatic intelligent computer control.
※ No pollution gas emission, real green environmental protection products.
Technical Parameters
Model |
LSH0.05 |
LSH0.1 |
LSH0.2 |
LSH0.3 |
LSH0.5 |
LSH0.7 |
LHS1.0 |
||
-0.7-Y/Q |
-0.7-Y/Q |
-0.7-Y/Q |
-0.7-Y/Q |
-0.7-Y/Q |
-0.7-Y/Q |
-0.7-Y/Q |
|||
RatedEvaporation |
kg/h |
50 |
100 |
200 |
300 |
500 |
700 |
1000 |
|
Working Pressure |
Mpa |
0.4/0.7 |
0.4/0.7 |
0.4/0.7 |
0.4/0.7 |
0.4/0.7 |
0.4/0.7 |
0.4/0.7 |
|
FuelConsumption |
BiomassPellet |
kg/h |
10 |
20 |
40 |
60 |
100 |
150 |
200 |
ThermalEfficiency |
% |
87-90 |
90 |
||||||
WaterVolume |
L |
24 |
29 |
106 |
190 |
660 |
770 |
1310 |
|
SteamOutlet |
mm |
15 |
20 |
25 |
32 |
40 |
40 |
40 |
|
WaterInlet |
mm |
15 |
20 |
20 |
25 |
25 |
25 |
25 |
|
BlowdownValve |
mm |
20 |
20 |
25 |
32 |
40 |
40 |
40 |
|
Safety Valve |
mm |
25 |
25 |
32 |
32 |
40 |
40 |
2×40 |
|
|
KW |
0.4 |
0.6 |
0.6 |
0.75 |
1.4 |
1.4 |
3.3 |
|
Chimney |
Φmm |
89 |
89 |
108 |
219 |
273 |
273 |
273 |
|
Dimensions |
L |
mm |
530 |
675 |
900 |
1100 |
1350 |
1450 |
1650 |
W |
mm |
510 |
550 |
1000 |
1300 |
1350 |
1450 |
1650 |
|
H |
mm |
1100 |
1200 |
1750 |
2220 |
2520 |
2640 |
2760 |
|
Weight |
kg |
187 |
252 |
720 |
1100 |
2200 |
2700 |
3655 |
