Sausage Processing Equipment

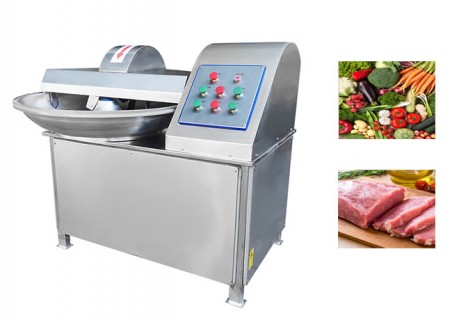

Industrial Meat Bowl Cutter Chopper Machine

※ Whole machine is made of SS304, reasonable design and stable performance.

※ Chopping knife has high hardness, good toughness and wear resistance.

※ Rotation speed reaches 4500 rpm, which greatly improves emulsification effect, product yield is higher.

※ Rotating pot is equipped with anti-overflow rim to effectively prevent seepage and overflow.

※ Good dynamic balance processing, machine runs smoothly, low noise and small vibration.

※ Electrical box is installed separately, good sealing performance, waterproof electrical operating switch is selected.

FOBQINGDAO price: USD2100-USD6200/SET

Pls contact us for accurate price.

Product Details

Industrial Meat Bowl Cutter Chopper Machine

Scope of Application

Multifunctional bowl cutter is mainly evaluated in the field of food processing. It can quickly process various vegetables into vegetable fillings, process meat and accessories into meat fillings or meat paste. It can also stir various fillings evenly, greatly improving emulsification effect of meat products and maintaining natural color of the fillings. Bowl chopper is an ideal equipment for the pasta processing industry to make vegetable bun fillings and dumpling fillings. It can also be used for crushing and processing of fish, fruits, vegetables and nuts. It can also be used to process feed.

Product Advantages

※ Meat bowl cutter are divided into: high-speed bowl cutter machine, two-speed bowl cutter machine, and variable frequency bowl cutter machine according to configuration;

※ Chopping knife is made of 9Cr15 material through special processing, chopping pot is made of cast stainless steel;

※ Chopping pot has two speeds, which can be matched with chopping knife at any speed. The chopping and mixing time is short and temperature rise of material is small;

※ Electrical components are all waterproof designed, with good sealing performance and easy cleaning;

※ Equipped with discharging device, discharging is convenient and clean;

※ Low noise, simple operation and significant energy saving effect.

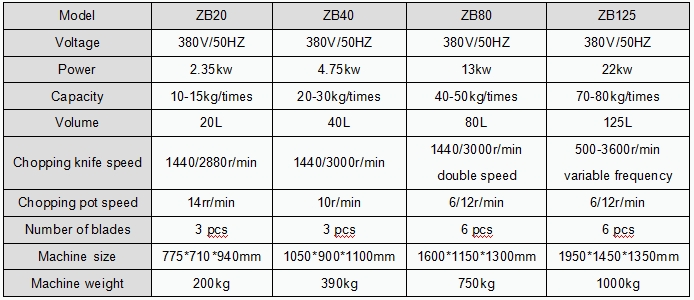

Technical Parameter

bowl chopper

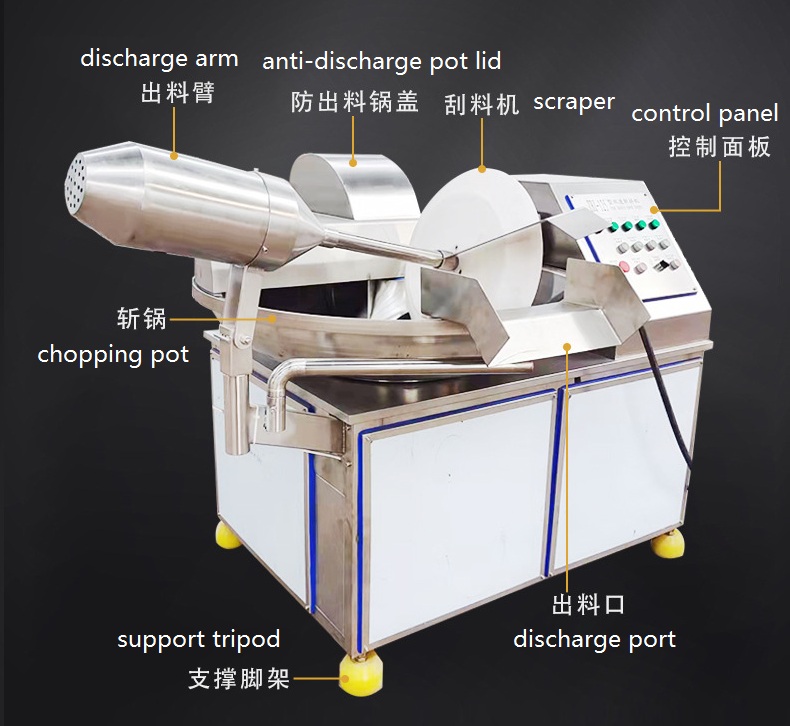

Machine Structure

Industrial bowl chopper consists of chopping pot, knife shaft, machine frame and an electronic control system.

bowl cutter machine

Working Principle of Bowl Chopper Machine

Chopping pot is rotated at low speed by motor through reducer, continuously feeds material to the knife group. Knife shaft is driven by double-speed motor (or variable frequency motor) to rotate at high speed. While raw materials are moving in a spiral motion in chopping pot, they are stirred and chopped by knife group and air in the minced meat is retained. Due to high-speed cutting of the knife, liquid juice separation rate of the product is reduced, emulsification effect is ensured and product flexibility and finesse is enhanced.

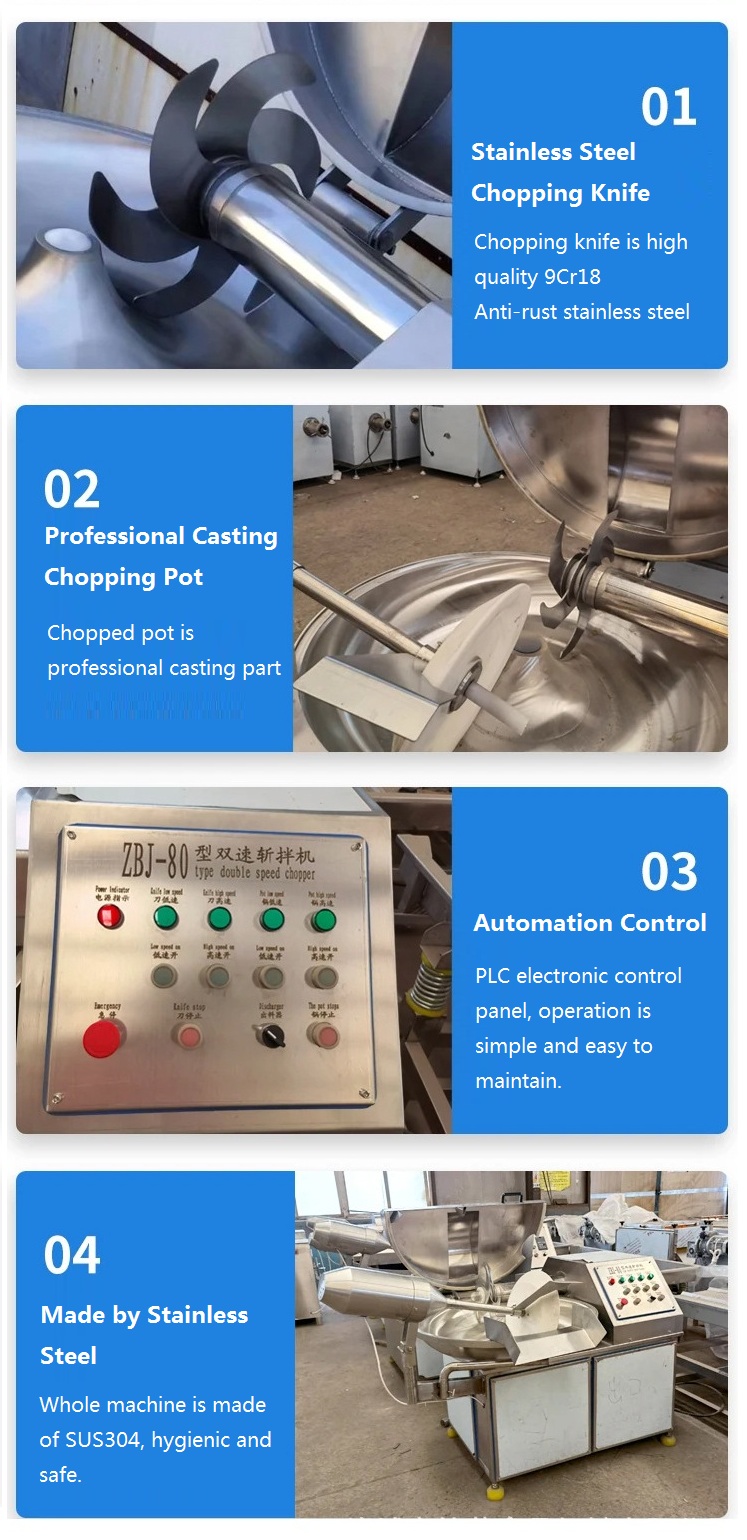

More Details

bowl cutter machine
