Dough Mixer

Product Description

Commercial Electric Dough Mixer Machine is main equipment of pasta processing, it is mainly used for wheat flour and water by 1:038-0.45 proportion to make the dough according to user's process requirements(sometimes add cooking oil, sugar and other food or food additives).

Scope of Application

This series of dough kneading machine are applied to Inns, restaurants and food-processing plants, cakes and candy factory, hotels and passenger yachts producing snack cakes, fillings, but also for the pharmaceutical and chemical sectors modulation sticky resin paint, mixed raw materials and other reagents.

Technical Parameters

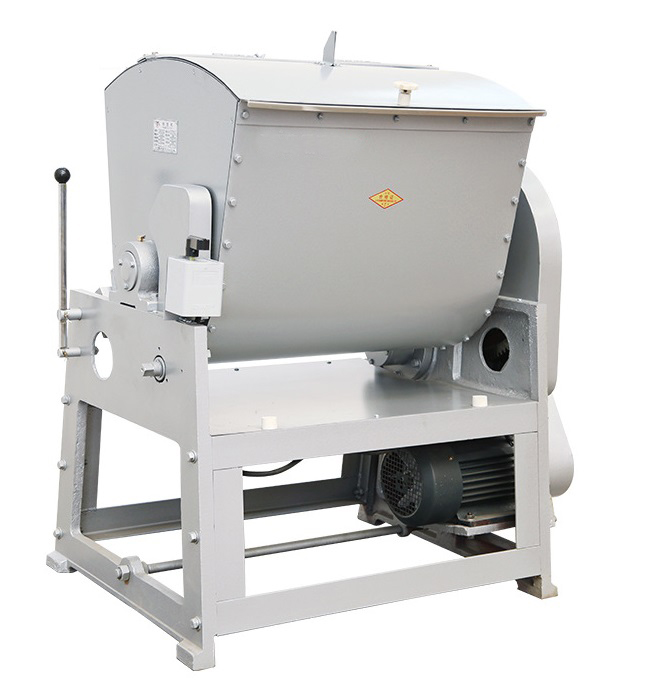

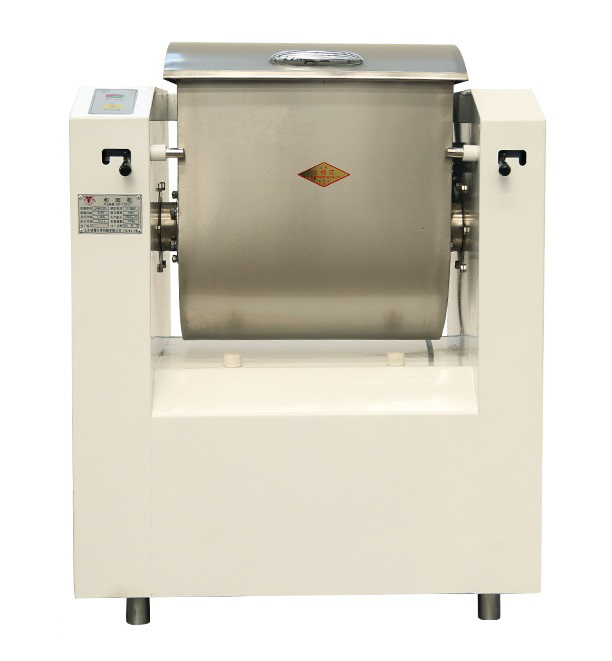

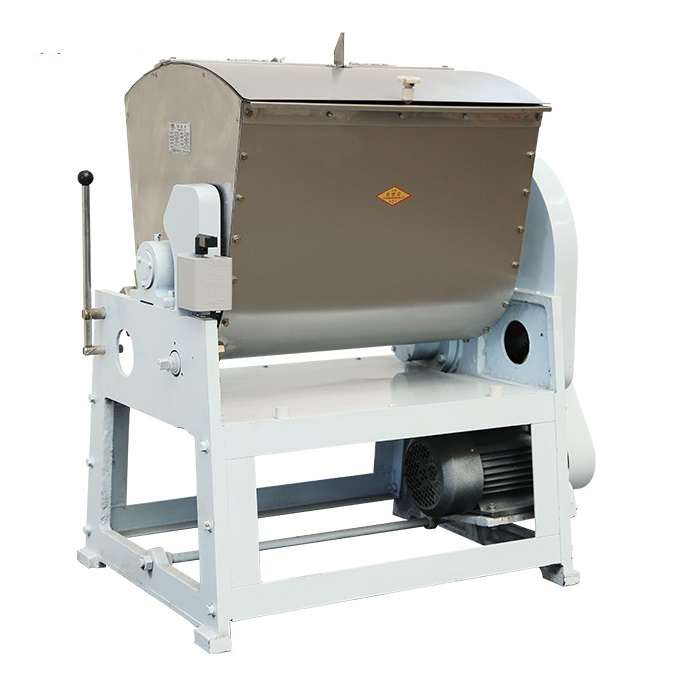

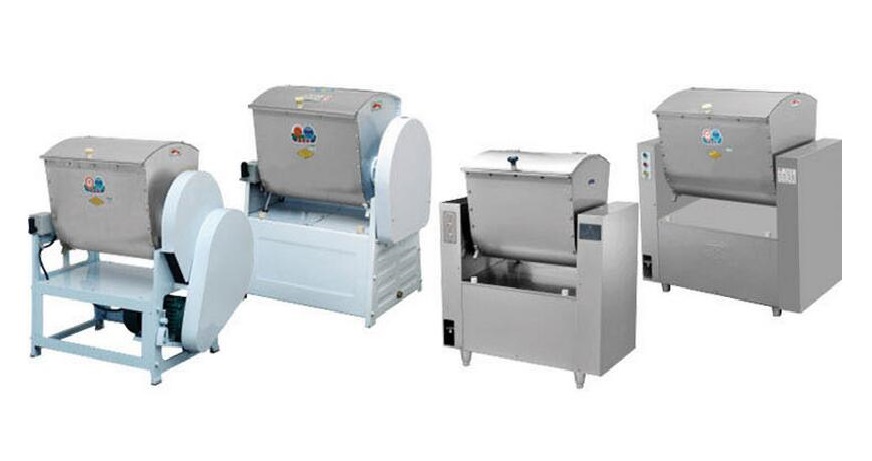

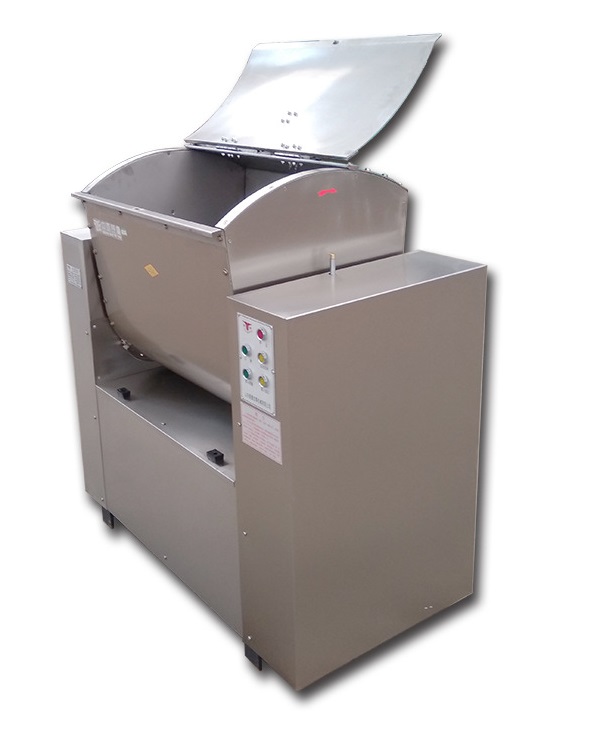

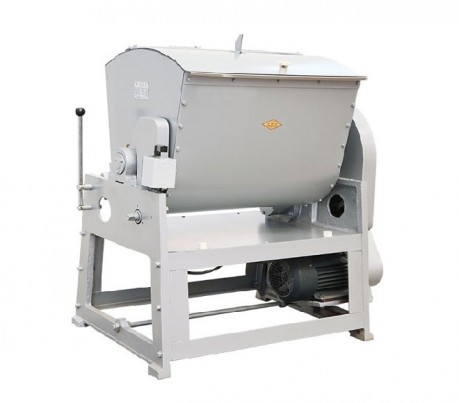

COMMERCIAL ELECTRIC DOUGH MIXER MACHINE/DOUGH KNEADING MACHINE
Model	Capacity (kg/time)	Voltage	Motor	Overall size (mm)	Weight (kg)	Remark
HT12.5I	12.5	220/380V,50HZ	YL90S-4,1.1KW Y90S-4,1.1KW	640x420x630	85	Manually skip bucket
HT20I	20	220/380V,50HZ	YL90L-4,1.5KW Y90L-4,1.5KW	760x600x850	115	Manually skip bucket
HT25III	25	220/380V,50HZ	YL100L1-4,2.2KW Y100L1-4,2.2KW	900x600x955	200	Manually skip bucket
HT50III	50	380V,50HZ	Y100L2-4,3KW	1040X675X960	240	Manually skip bucket
HT75I	75	380V,50HZ	Y100L2-4,3KW	1100X680X1150	350	Manually skip bucket
HY30	30	380V,50HZ	Y90L-4,1.5KW	850X460X950	190	Pedal manually skip bucket
HY50IV	50	380V,50HZ	Y100L1-4,2.2KW	980X510X1010	220	Pedal manually skip bucket
HY75III	75	380V,50HZ	Y112M-4,3KW Y802-4,0.75KW	1185X720X1400	415	Automatically skip bucket
HY100III	100	380V,50HZ	Y112M-4,4KW Y802-4,0.75KW	1280X720X1280	475	Automatically skip bucket
HY150III	150	380V,50HZ	Y132M-4,5.5KW Y802-4,0.75KW	1400X770X1560	635	Automatically skip bucket

Commercial Electric Dough Mixer Machine Feature

1) Made of choice material with exquisite workmanship, the gears can be mounted steadily.

2) Compact structure, steady driving, easy operation

3) Substitute manual operation, reduce labor intensity.

4) Provide different choice,meet the user's dietary hygiene requirements.

*flour bucket adopt stainless steel,shell and coverstoving varnish

*whole machine adopt stainless steel

5) Solid and firm, motor gear be covered protection, life expectancy is more than 8 years.

6) Stir bar is strong,radian is beautiful and uniform mixing.

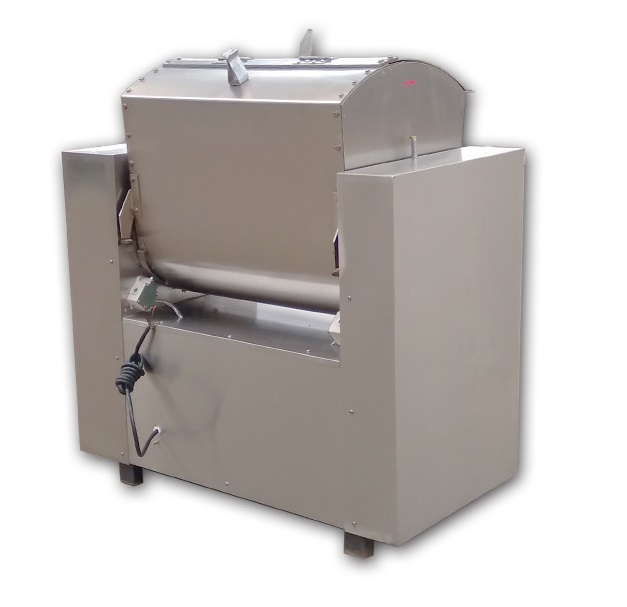

Structure of Dough Kneading Machine

The series dough mixer mainly consist of frame, flour bucket and electrical control.The driving part adopts belt pulley and sprocket wheel to drive, with high efficiency, low noise and longer life.The motor built-in,compact and well sealed. Electric controler make up by touch button, integrated circuit board, ac contactor, etc.The operation panel buttons controls the start, stop and inching reversal of the motor, Operation buttons adopt low voltage safety voltage, which is safe and convenient.The electrical components are installed in closed electrical boxes with high waterproofing performance.







Working Principle of Dough Mixer

The power provided by motor transmitt via the secondary belt drive and primary chain drive, after transmission mechanism deceleration and Increase torque, drive agitator rotary, through cooperate of mixer and bucket to mix flour, water and other accessories.Under agitation function of the agitator, flour and water first form to small pellets, which then bond to each other and gradually form to some large chunks.As the agitator is used to shear, fold, extend, stretch and knead etc in a series of functions, it will eventually be made into an ideal dough with flexibility, toughness and extension.

Detailed Images

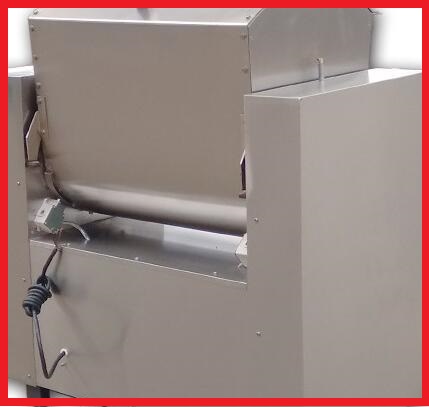

   Machine Parts Name:Flour bucket

   Material:stainless steel

   Original:China

   Adoptfood grade stainless steel, durable, anti-oxidation

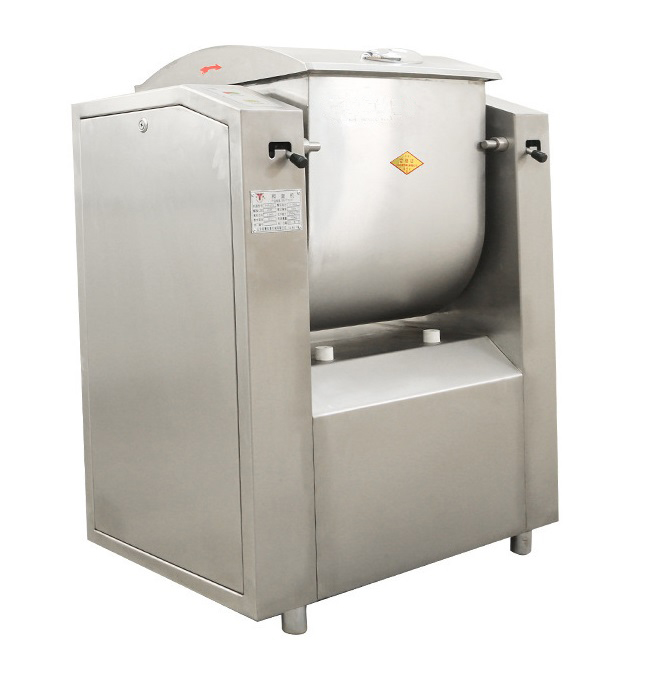

  Machine Parts Name:Machine frame

  Material:Stainless steel

  Original:China

  Stainless steel material, meet safety standard, processed food is healthier

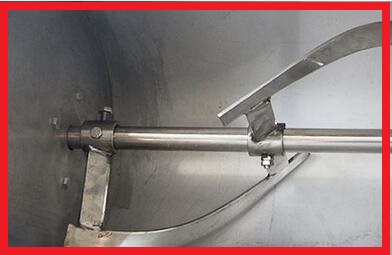

   Machine Parts Name:Stir bar

   Shape:J shape,C shape,Z shape

   Original:China

   Stainless steel material,beautiful radian,imitate artificialknead dough,dough is evenly

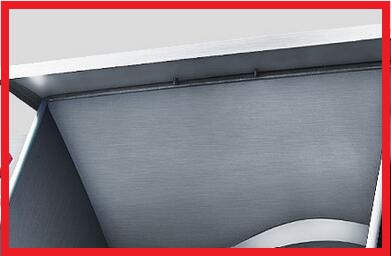

  Machine Parts Name: Dust cover

  Material:stainless steel

  Original: China

  Effectively prevent dust splashing, safety and sanitation

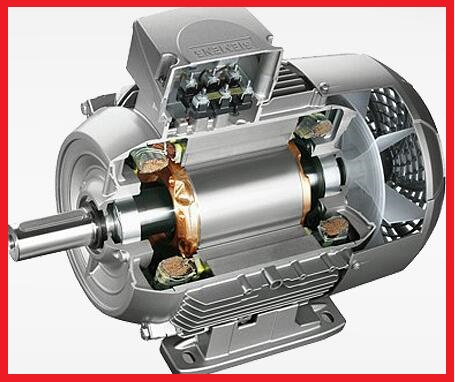

  Machine Parts Name:Motor

  Specification:220V/380V,110V,415V etc.

  Original:China

  Pure copper wire motor, low noise, strong efficiency, fast speed
